APC77101 - POTS/ISDN Splitter

Datasheet Summary

Description

ISDN Splitter LPF NOTES: Passband Frequency DC to 125kHz Insertion Loss max 0.4 dB Return Loss min 20 dB Stopband Frequency 800kHz to 7.9MHz Attenuation min 65 dB Impedance 150  APPLICATION OF APC77101 POTS/ISDN SPLITTER - MATCHED IMPEDANCES - PROVIDES POTS XDSL ISOLATION - ALLOWS DC LOO

📥 Download Datasheet

Datasheet preview – APC77101

Datasheet Details

Part number APC77101
Manufacturer Bel Fuse
File Size 135.32 KB
Description POTS/ISDN Splitter
Datasheet download datasheet APC77101 Datasheet
Additional preview pages of the APC77101 datasheet.

📁 Similar Datasheet

Other Datasheets by Bel Fuse
  • APC77115 - ISDN/Smartphone Splitter
  • APC77116 - Integrated CPE VDSL Filter/Hybrid Solution
  • APC77118 - Integrated CO VDSL Filter/Hybrid Solution
  • APC77122 - Integrated CO Filter/Hybrid Solution VDSL/10BaseS
  • APC77122RC - Integrated CO Filter/Hybrid Solution VDSL/10BaseS
  • APC77124 - Integrated CPE Filter/Hybrid Solution VDSL/10BaseS
  • APC77124RC - Integrated CPE Filter/Hybrid Solution VDSL/10BaseS
  • APC77127 - VDSL Hybrid Module

Full PDF Text Transcription

Click to expand full text

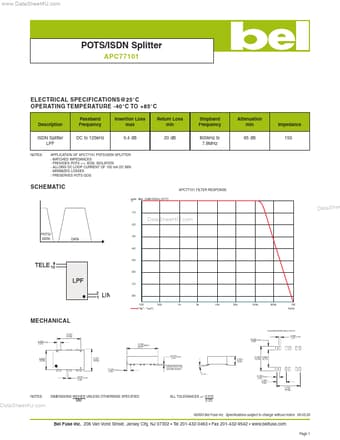

www.DataSheet4U.com POTS/ISDN Splitter APC77101 ELECTRICAL SPECIFICATIONS@25°C OPERATING TEMPERATURE -40°C TO +85°C Description ISDN Splitter LPF NOTES: Passband Frequency DC to 125kHz Insertion Loss max 0.4 dB Return Loss min 20 dB Stopband Frequency 800kHz to 7.9MHz Attenuation min 65 dB Impedance 150  APPLICATION OF APC77101 POTS/ISDN SPLITTER - MATCHED IMPEDANCES - PROVIDES POTS <-> XDSL ISOLATION - ALLOWS DC LOOP CURRENT OF 100 mA DC MIN - MINIMIZES LOSSES - PRESERVES POTS QOS SCHEMATIC volts dBs (0dB=500m) [27C] 0 APC77101 FILTER RESPONSE -10 DataShee -20 DataSheet4U.com POTS/ ISDN DATA -30 -40 -50 -60 -70 -80 100 ("tip" - "out") 300 1k 3k 10k 30k 100k 300k 1M hertz MECHANICAL SUGGESTEDP� ADLA� YOUT� 0.700� 17,78� 0.100� TYP� 2,54� 0.
