APL3205B Li+ Charger Protector

APL3205B Description

APL3205A/B Li+ Charger Protection IC .
The APL3205A/B provide completed Li+ charger protections against over-voltage, over-current, and battery overvoltage.

APL3205B Features

* Input Over-Voltage Protection Programmable Input Over-Current Protection Battery Over-Voltage Protection Over-Temperature Protection High Immunity of False Triggering High Accuracy Protection Threshol

APL3205B Applications

* Smart Phones and PDAs Digital Still Cameras Portable Devices Pin Configuration IN 1 GND 2 PSW 3 FAULT 4 8 OUT 7 ILIM 6 BAT 5 EN TDFN2x2-8 (Top View) Simplified Application Circuit 5V Adapter or USB IN OUT Charger Input APL3205A/B EN FAULT PSW ILIM GND BAT Li+ Batte

📥 Download Datasheet

Preview of APL3205B PDF

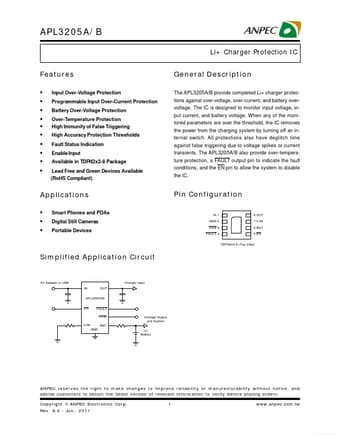

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
APL3205B
Manufacturer
ANPEC
File Size
496.00 KB
Datasheet
APL3205B_ANPEC.pdf
Description
Li+ Charger Protector
