APL0115 - PLL Module

Product Overview

Advanced Semiconductor Business

Part number	APL0115
Manufacturer	Advanced Semiconductor Business
File Size	105.68 KB
Description	PLL Module
Datasheet	APL0115 Datasheet

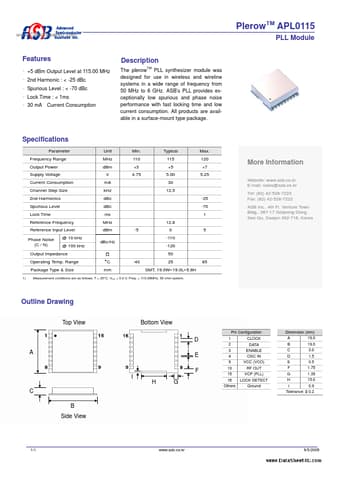

Additional preview pages of the APL0115 datasheet.

The plerowTM PLL synthesizer module was designed for use in wireless and wireline systems in a wide range of frequency from 50 MHz to 6 GHz.

+5 dBm Output Level at 115.00 MHz.
2nd Harmonic : < -25 dBc.
Spurious Level : < -70 dBc.
Lock Time : < 1ms.
30 mA Current Consumption Specifications Parameter Frequency Range Output Power Supply Voltage Current Consumption Channel Step Size 2nd Harmonics Spurious Level Lock Time Reference Frequency Reference Input Level Phase Noise (C / N) @ 10 kHz @ 100 kHz Unit MHz dBm V mA kHz dBc dBc ms MHz dBm dBc/Hz Ω °C mm -40 -5 12.8 0 -110 -120 50 25 SMT, 19.0W×19.0L×5.8H 85 5.
