APL0189 - PLL Module

Product Overview

Advanced Semiconductor Business

Part number	APL0189
Manufacturer	Advanced Semiconductor Business
File Size	168.77 KB
Description	PLL Module
Datasheet	APL0189 Datasheet

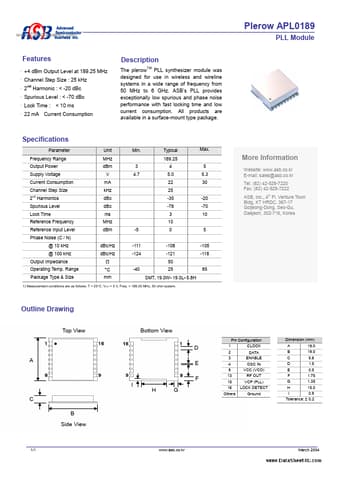

Additional preview pages of the APL0189 datasheet.

The plerow PLL synthesizer module was designed for use in wireless and wireline systems in a wide range of frequency from 50 MHz to 6 GHz.

+4 dBm Output Level at 189.25 MHz.
Channel Step Size : 25 kHz.
2 nd Harmonic : < -20 dBc < 10 ms.
Spurious Level : < -70 dBc.
Lock Time :.
22 mA Current Consumption Specifications Parameter Frequency Range Output Power Supply Voltage Current Consumption Channel Step Size 2nd Harmonics Spurious Level Lock Time Reference Frequency Reference Input Level Phase Noise (C / N) @ 10 kHz @ 100 kHz Output Impedance Operating Temp. Range Package Type & Size dBc/Hz dBc/Hz Ω.
