APL0050 - PLL Module

Advanced Semiconductor Business

The APL0050 by Advanced Semiconductor Business is a PLL Module. Below is the official datasheet preview.

Datasheet Details

Part number	APL0050
Manufacturer	Advanced Semiconductor Business
File Size	168.33 KB
Description	PLL Module
Datasheet	APL0050_AdvancedSemiconductorBusiness.pdf

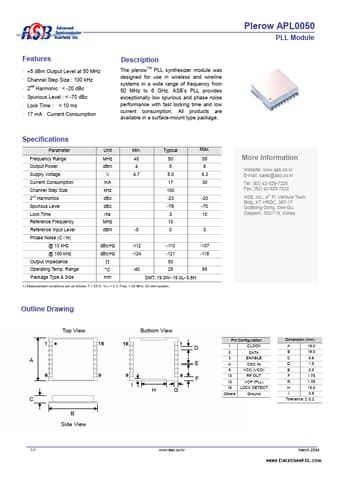

Additional preview pages of the APL0050 datasheet.

The plerow PLL synthesizer module was designed for use in wireless and wireline systems in a wide range of frequency from 50 MHz to 6 GHz.

+5 dBm Output Level at 50 MHz.
Channel Step Size : 100 kHz.
2 nd Harmonic : < -20 dBc < 10 ms.
Spurious Level : < -70 dBc.
Lock Time :.
17 mA Current Consumption Specifications Parameter Frequency Range Output Power Supply Voltage Current Consumption Channel Step Size 2nd Harmonics Spurious Level Lock Time Reference Frequency Reference Input Level Phase Noise (C / N) @ 10 kHz @ 100 kHz Output Impedance Operating Temp. Range Package Type & Size dBc/Hz dBc/Hz Ω °C.
