APL1001J

N-Channel Power MOSFET

APL1001J Datasheet (77.24 KB)

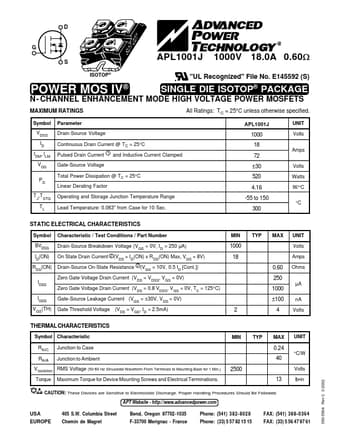

Preview of APL1001J PDF

Datasheet Details

Part number:

APL1001J

Manufacturer:

Advanced Power Technology

File Size:

77.24 KB

Description:

N-channel power mosfet.
G S D SOT-227 S D G S APL1001J 1000V 18.0A 0.60W ISOTOP® "UL Recognized" File No. E145592 (S) POWER MOS IV® SINGLE DIE ISOTOP® PACKAGE N - CHA.
