APL1088

500mA Low Dropout Linear Regulator

APL1088 Features

* Output Voltage Accuracy ± 2.0% Line Regulation - 1mV (typ.) Load Regulation - 6mV (typ.) Input Voltage Range up to 9V Internal Current Limiting and Thermal Shutdown Protections SOT-89 and TO-92 Packages Available General Description The AP

APL1088 General Description

The APL1088 is a 3-pin low dropout linear regulator with 2.0% accuracy of output voltage over line , load and temperature variations. The output current capability of APL1088 is over 500mA. Dropout voltage at 500mA output current is less than 1.5V(max). Both output current limiting and thermal shutd.

APL1088 Datasheet (86.12 KB)

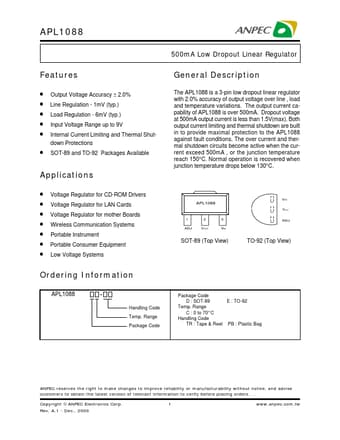

APL1088 Datasheet Preview — Preview of APL1088 PDF

Datasheet Details

Part number:

APL1088

Manufacturer:

Etc

File Size:

86.12 KB

Description:

500ma low dropout linear regulator.
