APL3207 Li+ Battery Charger and Low Dropout Linear Regulator

APL3207 Description

APL3207 Li+ Battery Charger and Low Dropout Linear Regulator Combo .
The APL3207 combines a constant-current/constant-voltage linear single cell Li+ battery charger with a low dropout linear regulator.

APL3207 Features

* Programmable Charge Current Up to 700mA Charge Status Output Pin Soft-Start Limits Inrush Current 4.2V Charge Termination Voltage with ±1% Accuracy 45

APL3207 Applications

* The charger of APL3207 provides 0.7A charge current with thermal regulation protection to optimize the board design for compact size and typical thermal conditions. When the junction temperature reaches the thermal regulation threshold, the charger does not shut down but simply reduces the charge c

📥 Download Datasheet

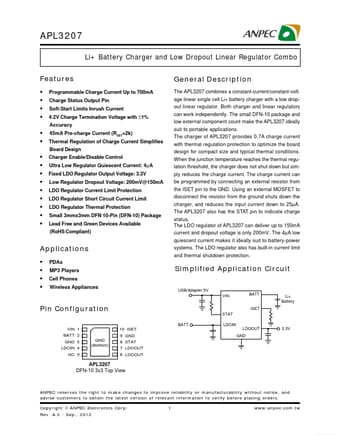

Preview of APL3207 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
APL3207
Manufacturer
ANPEC
File Size
336.74 KB
Datasheet
APL3207_ANPEC.pdf
Description
Li+ Battery Charger and Low Dropout Linear Regulator
