APL3216 Li+ Charger Protector

APL3216 Description

APL3216 Li+ Charger Protection IC .
The APL3216 provides complete Li+ charger protection against Input over-voltage, input over-current and overtemperature.

APL3216 Features

* Provide Input Over-voltage Protection Provide Input Over-current Protection Provide Over Temperature Protection Provide Reverse Current Blocking High Immunity of False Triggering High Accuracy Protection Threshold Low On

APL3216 Applications

* Available in TDFN2x2-8, SOT-23-6 Packages Lead Free and Green Devices Available (RoHS Compliant) Applications Pin Configuration
* Cell Phones Simplified Application Circuit 5V Adapter ACIN CHR_LDO ACIN 1 ACIN 2 GND 3 VCDT 4 8 OUT 7 OUT 6 CHR_LDO 5 GATDRV CHR_LDO P

📥 Download Datasheet

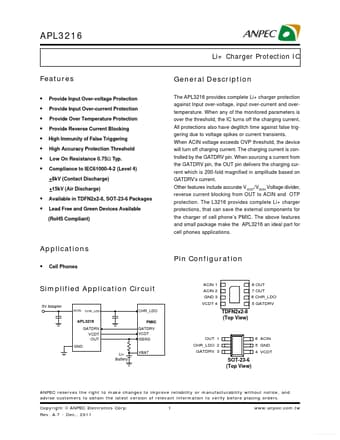

Preview of APL3216 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
APL3216
Manufacturer
ANPEC
File Size
205.63 KB
Datasheet
APL3216_ANPEC.pdf
Description
Li+ Charger Protector
