APL3526B, APL3526 6A Load Switch

APL3526B Description

APL3526/B Ultra-Low On-Resistance, 6A Load Switch with Soft Start .
The APL3526/B is an ultra-low on-resistance, power-distribution switch with external soft start control.

APL3526B Features

* 15mΩ (Typical) On-resistance 6A Continuous Current Soft Start Time Programmable by External Capacitor Wide Input Voltage Range (VIN): 0.8V to 5.5V Supply Voltage Range (VBIAS): 3V to 5.5V Output Disch

APL3526B Applications

* Notebook AIO PC Pin Configurations APL3526 VIN 1 VIN 2 EN 3 BIAS4 TDFN2x2-8 (Top View) 8 7 6 5 VOUT VOUT SS GND APL3526B VIN 1 VIN 2 ENB3 BIAS4 TDFN2x2-8 (Top View) = Exposed Pad (connected to ground plane for better heat dissipation) 8 7 6 5 VOUT VOUT SS GND ANPEC reserves

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: APL3526B, APL3526. Please refer to the document for exact specifications by model.

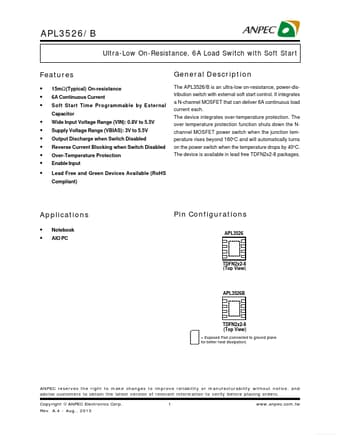

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
APL3526B, APL3526
Manufacturer
ANPEC
File Size
225.98 KB
Datasheet
APL3526_ANPEC.pdf
Description
6A Load Switch
Note
This datasheet PDF includes multiple part numbers: APL3526B, APL3526.
Please refer to the document for exact specifications by model.
