APL3546

Power Distribution Switches

APL3546 Features

* 78mΩ High Side MOSFET 2.5A Continuous Current Soft Start Time Programmable by External Capacitor Wide Supply Voltage Range: 4.5V to 24V Current Limit and Short Circuit Protections Under Voltage Lockout Protecti

APL3546 General Description

The APL3546 is a power-distribution switch with some protection functions that can deliver current up to 2.5A. The device incorporates a 78m Ω N-channel MOSFET power switch that is controlled by an enable logic pin and has a SS pin dedicated to soft start ramp-up rate control that can be used in app.

APL3546 Datasheet (511.56 KB)

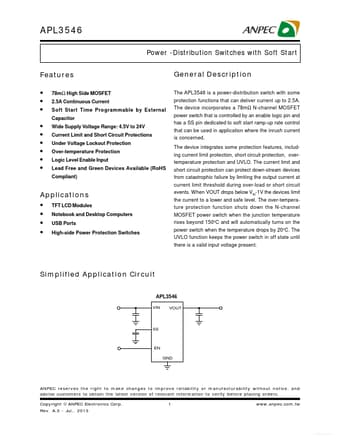

Preview of APL3546 PDF

Datasheet Details

Part number:

APL3546

Manufacturer:

ANPEC

File Size:

511.56 KB

Description:

Power distribution switches.
