APR3001, MicroPower Microprocessor Reset

APR3001/2/3 MicroPower Microprocessor Reset Circuit .
The APR3001/2/3 are designed to monitor voltage supplies in µP and digital systems.

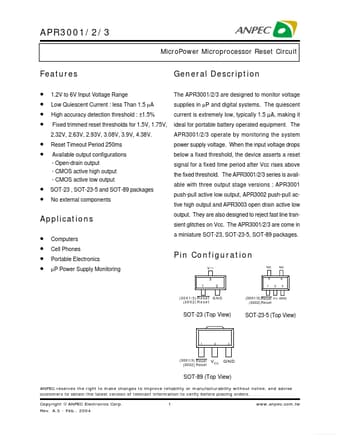

datasheet Preview Page 1 from Datasheet4u.com

APR3001_ANPEC.pdf

APR3001 Datasheet Preview — Preview of APR3001 PDF

Datasheet Details

Part number:

APR3001

Manufacturer:

ANPEC

File Size:

168.62 KB

Description:

MicroPower Microprocessor Reset

Features

* 1.2V to 6V Input Voltage Range Low Quiescent Current : less Than 1.5 µA High accuracy detection threshold : ±1.5% Fixed trimmed reset thresholds for 1.5V, 1.75V, 2.32V, 2.63V, 2.93V, 3.08V, 3.9V, 4.38V. Reset Timeout Period 250ms Available

Applications

* Computers Cell Phones Portable Electronics µP Power Supply Monitoring Pin Configuration V CC 3 1 2 NC NC 5 1 2 4 3 (3 0 0 1 /3 ) R e s e t G N D (3 0 0 2 ) R e s e t (3001/3) Reset V CC GND (3002) Reset SOT-23 (Top View) SOT-23-5 (Top View) 1 2 3 (300
