APR3415 Datasheet - Diodes

APR3415 SECONDARY SIDE SYNCHRONOUS RECTIFICATION SWITCHER

APR3415 is a secondary side Combo IC, which combines an NChannel MOSFET and a driver circuit designed for synchronous rectification (SR) in DCM operation. It also integrates output voltage detect function for primary side control system. The N-Channel MOSFET has been optimized for low gate charge, l.

APR3415 Features

* Synchronous Rectification for DCM Operation Flyback Eliminate Resonant Ring Interference Fast Detector of Supply Voltages Fewest External Components

* Totally Lead-free & Fully RoHS Compliant (Notes 1 & 2)

* Halogen and Antimony Free. “Green” Devic

APR3415-Diodes.pdf

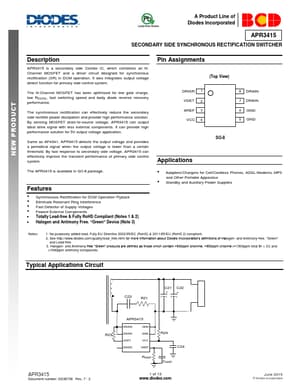

Preview of APR3415 PDF
APR3415 Datasheet Preview Page 2 APR3415 Datasheet Preview Page 3

Datasheet Details

Part number:

APR3415

Manufacturer:

DIODES ↗

File Size:

481.29 KB

Description:

Secondary side synchronous rectification switcher.
