APR34309C

SECONDARY SIDE SYNCHRONOUS RECTIFICATION SWITCHER

APR34309C Features

* Synchronous Rectification for DCM Operation Flyback Eliminate Resonant Ring Interference Fast Detector of Supply Voltages Fewest External Components

* Totally Lead-free & Fully RoHS Compliant (Notes 1 & 2)

* Halogen and Antimony Free. “Green” Devic

APR34309C General Description

APR34309C is a secondary side Combo IC, which combines an NChannel MOSFET and a driver circuit designed for synchronous rectification (SR) in DCM operation. It also integrates output voltage detect function for primary side control system. The N-Channel MOSFET has been optimized for low gate charge,.

APR34309C Datasheet (525.63 KB)

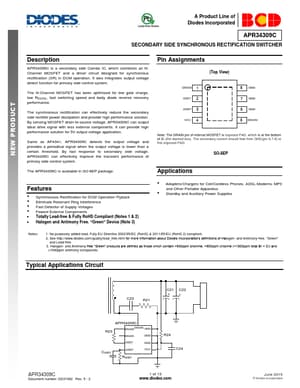

Preview of APR34309C PDF

Datasheet Details

Part number:

APR34309C

Manufacturer:

DIODES ↗

File Size:

525.63 KB

Description:

Secondary side synchronous rectification switcher.
