APW7302B 2A 24V 340kHz Synchronous Buck Converter

APW7302B Description

APW7302B 2A 24V 340kHz Synchronous Buck Converter .
Wide Input Voltage from 4. 2A Continuous Output Current.

APW7302B Applications

* Simplified Application Circuit VIN
* LCD Monitor/TV
* Set-Top Box
* DSL, Switch HUB
* Notebook Computer Pin Configuration APW7302B VOUT APW7302B BS 1 VIN 2 LX 3 GND 4 9 GND 8 SS 7 EN 6 COMP 5 FB SOP-8P (Top View) 9 Exposed Pad The pin 4 must be connected to

📥 Download Datasheet

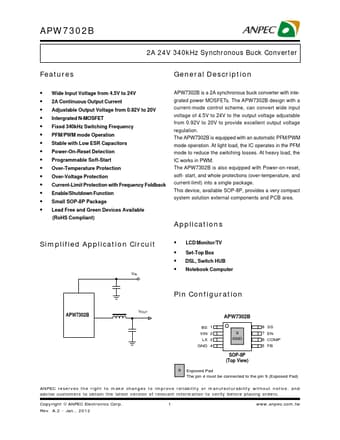

Preview of APW7302B PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
APW7302B
Manufacturer
ANPEC
File Size
542.74 KB
Datasheet
APW7302B-ANPEC.pdf
Description
2A 24V 340kHz Synchronous Buck Converter
