APW7303 3A 24V 340kHz synchronous Buck Converter

APW7303 Description

APW7303 3A 24V 340kHz synchronous Buck Converter .
APW7303 is a 3A synchronous buck converter with integrated power MOSFETs.

APW7303 Features

* Wide Input Voltage from 4.5V to 24V 3A Continuous Output Current Adjustable Output Voltage from 0.92V to 20V Intergrated N-MOSFET Fixed 340kHz Switching Frequency Stable

APW7303 Applications

* LCD Monitor/TV Set-Top Box DSL, Switch HUB Notebook Computer 9 BS VIN LX GND 1 2 3 4 9 GND 8 7 6 5 SS EN COMP FB SOP-8P (Top View) Exposed Pad The pin 4 must be connected to the pin 9 (Exposed Pad) Simplified Application Circuit VIN APW7303 VOUT ANPE

📥 Download Datasheet

Preview of APW7303 PDF

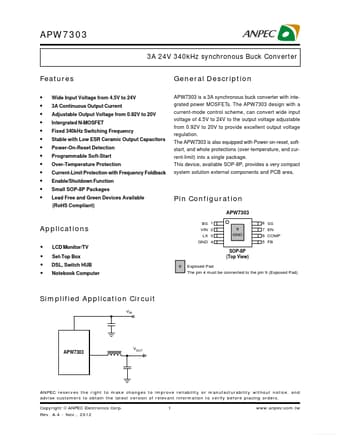

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
APW7303
Manufacturer
ANPEC
File Size
319.92 KB
Datasheet
APW7303-ANPEC.pdf
Description
3A 24V 340kHz synchronous Buck Converter
