APW8811 Datasheet - ANPEC

System Power PWM Controller

APW8811 Features

* Wide Input Voltage Range from 6V to 25V Provide 4 Independent Outputs with ±1.5% Accuracy Over-Temperature - PWM1 Controller with Adjustable (2V to 5.5V) Output - PWM2 Controller with Adjustable (2V to 5.5V) Output - 100mA Low Dropout Regulator (LDO5) with Fixed 5V Output - 100mA

APW8811 General Description

The APW8811 integrates dual step-down, constant-ontime, synchronous PWM controllers (that drives dual Nchannel MOSFETs for each channel) and two low dropout regulators as well as various protections into a chip. The PWM controllers step down high voltage of a battery to generate low-voltage for NB a.

APW8811 Datasheet (387.69 KB)

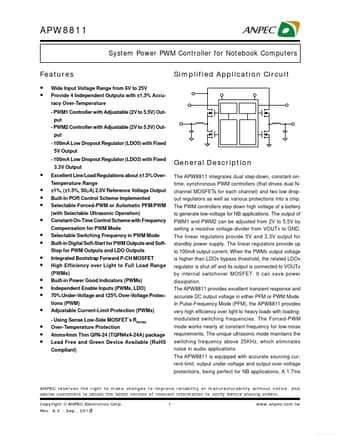

APW8811 Datasheet Preview — Preview of APW8811 PDF

Datasheet Details

Part number:

APW8811

Manufacturer:

ANPEC

File Size:

387.69 KB

Description:

System power pwm controller.
