AD30D200 Datasheet, Schottky, AP Semiconductor

AD30D200 Features

  • Schottky
  • Ultra Low Forward Voltage ( VF ) Drop
  • Very Low Reverse Leakage in high temperature.
  • Softest, fast switching capability
  • 150℃ Operating Junction Te

PDF File Details

Part number:

AD30D200

Manufacturer:

AP Semiconductor

File Size:

460.55kb

Download:

📄 Datasheet

Description:

200v 30a ultra low vf schottky.

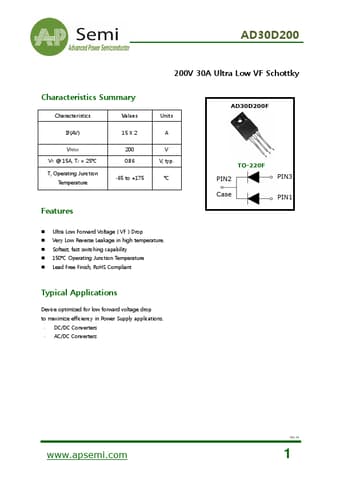

Datasheet Preview: AD30D200 📥 Download PDF (460.55kb)
Page 2 of AD30D200 Page 3 of AD30D200

AD30D200 Application

  • Applications Device optimized for low forward voltage drop to maximize efficiency in Power Supply applications.
  • DC/DC Converters
