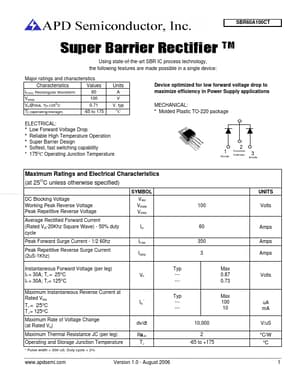

datasheet Preview Page 1 from Datasheet4u.com

SBR60A100CT Super Barrier Rectifier

SBR60A100CT Using state-of-the-art SBR IC process technology, the following .

SBR60A100CT_APD.pdf

SBR60A100CT Datasheet Preview — Preview of SBR60A100CT PDF

Datasheet Details

Part number:

SBR60A100CT

Manufacturer:

APD

File Size:

91.51 KB

Description:

Super Barrier Rectifier

Features

* are made possible in a single device: Major ratings and characteristics Values Characteristics IF(AV) Rectangular Waveform VRRM VF@30A, Tj=125OC Tj (operating/storage) 60 100 0.71 -65 to 175 Units A V V, typ O C Device optimized for low forward voltage drop to maximize efficiency in Power Supply a

Applications

* MECHANICAL:
* Molded Plastic TO-220 package ELECTRICAL:
* Low Forward Voltage Drop
* Reliable High Temperature Operation
* Super Barrier Design
* Softest, fast switching capability
* 175OC Operating Junction Temperature 1 Anode Common Cathode 2 3 Anode Maximum Ratings a
