SBR60A60PT, Super Barrier Rectifier

SBR60A60PT Using state-of-the-art SBR IC process technology, the following .

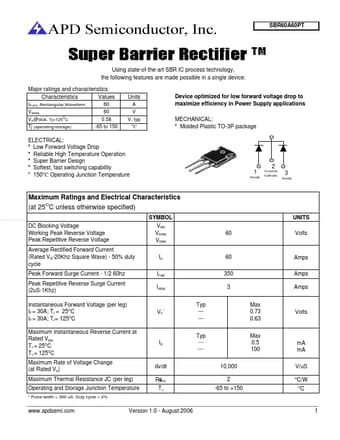

datasheet Preview Page 1 from Datasheet4u.com

SBR60A60PT_APD.pdf

SBR60A60PT Datasheet Preview — Preview of SBR60A60PT PDF

Datasheet Details

Part number:

SBR60A60PT

Manufacturer:

APD

File Size:

93.78 KB

Description:

Super Barrier Rectifier

Features

* are made possible in a single device: Major ratings and characteristics Values Characteristics IF(AV) Rectangular Waveform VRRM VF@30A, Tj=125OC Tj (operating/storage) 60 60 0.58 -65 to 150 Units A V V, typ O C Device optimized for low forward voltage drop to maximize efficiency in Power Supply ap

Applications

* MECHANICAL:
* Molded Plastic TO-3P package ELECTRICAL:
* Low Forward Voltage Drop
* Reliable High Temperature Operation
* Super Barrier Design
* Softest, fast switching capability
* 150OC Operating Junction Temperature 2 1 Anode Common Cathode 3 Anode Maximum Ratings and
