LCFS1053 - 1100 to 2200 MHz Frequency Synthesizer

Product Overview

API Technologies

📥 Download Datasheet

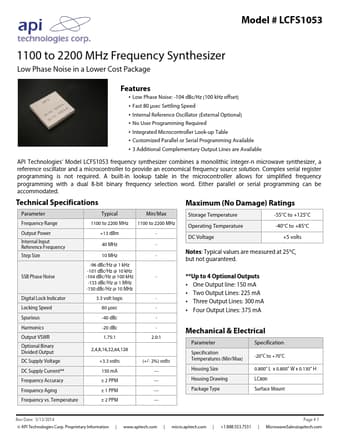

LCFS1053 1100 to 2200 MHz Frequency Synthesizer by API Technologies - Datasheet Preview — Datasheet preview – LCFS1053

Datasheet Details

Part number	LCFS1053
Manufacturer	API Technologies
File Size	114.66 KB
Description	1100 to 2200 MHz Frequency Synthesizer
Datasheet	LCFS1053 Datasheet
Additional preview pages of the LCFS1053 datasheet.

Product details

Features

Low Phase Noise: -104 dBc/Hz (100 kHz offset).
Fast 80 µsec Settling Speed.
Internal Reference Oscillator (External Optional).
No User Programming Required.
Integrated Microcontroller Look-up Table.
Customized Parallel or Serial Programming Available.
3 Additional Complementary Output Lines are Available API Technologies’ Model LCFS1053 frequency synthesizer combines a monolithic integer-n microwave synthesizer, a reference oscilla.
