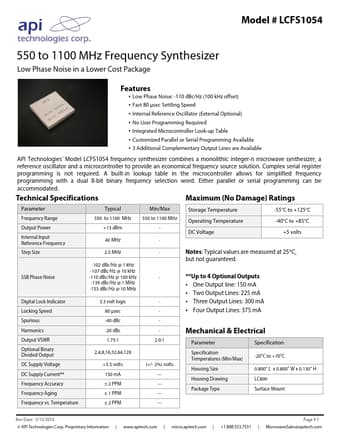

LCFS1054 Datasheet, Synthesizer, API Technologies

LCFS1054 Features

• Synthesizer
• Low Phase Noise: -110 dBc/Hz (100 kHz offset)
• Fast 80 µsec Settling Speed
• Internal Reference Oscillator (External Optional)
• No User Programming R

PDF File Details

Part number:

LCFS1054

Manufacturer:

API Technologies

File Size:

114.38kb

Download:

📄 Datasheet

Description:

550 to 1100 mhz frequency synthesizer.
