aP8910A, aP8921A Datasheet - APLUS

aP8910A, aP8921A, VOICE OTP

Integrated Circuits Inc.aP8921A/10A APLUS MAKE YOUR PRODUCTION A-PLUS VOICE OTP IC aP8921A * 21sec aP8910A * 10sec APLUS INTEGRATED .
aP8921A/10A series high performance Voice OTP is fabricated with Standard CMOS process with embedded 512K/256K bits EPROM.

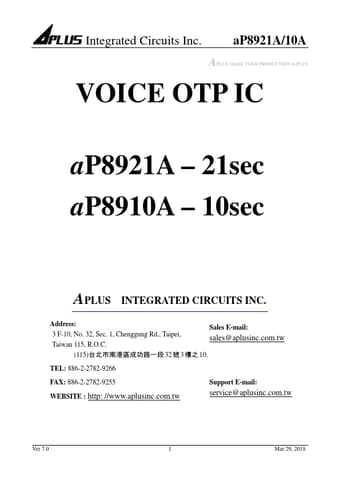

datasheet Preview Page 1 from Datasheet4u.com

aP8921A-APLUS.pdf

aP8910A Datasheet Preview — This datasheet PDF includes multiple part numbers: aP8910A, aP8921A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

aP8910A, aP8921A

Manufacturer:

APLUS

File Size:

222.40 KB

Description:

VOICE OTP

Note:

This datasheet PDF includes multiple part numbers: aP8910A, aP8921A.
Please refer to the document for exact specifications by model.

Features

* Standard CMOS process.
* Embedded 512K/256K bits EPROM.
* 21/10 sec Voice Length at 6KHz sampling and 4-bit ADPCM compression.
* Maximum 12 voice groups.
* Combination of voice blocks to extend playback duration.
* 960 table entries are available for

Applications

* Built-in resistor controlled oscillator, 8-bit current mode D/A output and PWM direct speaker driving output minimize the number of external components. PC controlled programmer and developing software are available. Ver 7.0 2 Mar 29, 2018 Integrated Circuits Inc. PIN CONFIGURATIONS aP8921A/10A
