aP89170

VOICE OTP

aP89170 Features

* Standard CMOS process.

* Embedded 8M/4M/2M EPROM.

* 341/170/85 sec Voice Length at 6KHz sampling and 4-bit ADPCM compression.

* Maximum 254 voice groups.

* Combination of voice blocks to extend playback duration.

* 7680 table entries are available fo

aP89170 General Description

aP89341/170/085 series high performance Voice OTP is fabricated with Standard CMOS process with embedded 8M/4M/2M bits EPROM. It can store up to 341/170/85 sec voice message with 4-bit ADPCM compression at 6KHz sampling rate. 8-bit PCM is also available as user selectable option. Three trigger modes.

aP89170 Datasheet (354.10 KB)

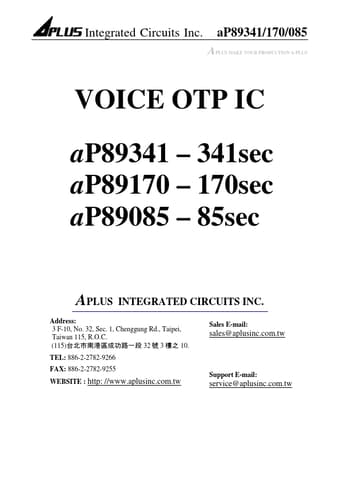

Preview of aP89170 PDF

Datasheet Details

Part number:

aP89170

Manufacturer:

APLUS

File Size:

354.10 KB

Description:

Voice otp.
Integrated Circuits Inc. aP89341/170/085 APLUS MAKE YOUR PRODUCTION A-PLUS VOICE OTP IC aP89341

* 341sec aP89170

* 170sec aP89085
.
