aP89341 VOICE OTP

aP89341 Description

Integrated Circuits Inc.aP89341/170/085 APLUS MAKE YOUR PRODUCTION A-PLUS VOICE OTP IC aP89341 * 341sec aP89170 * 170sec aP89085 .
aP89341/170/085 series high performance Voice OTP is fabricated with Standard CMOS process with embedded 8M/4M/2M bits EPROM.

aP89341 Features

* Standard CMOS process.
* Embedded 8M/4M/2M EPROM.
* 341/170/85 sec Voice Length at 6KHz sampling and 4-bit ADPCM compression.
* Maximum 254 voice groups.
* Combination of voice blocks to extend playback duration.
* 7680 table entries are available fo

aP89341 Applications

* Built-in resistor controlled oscillator, 8-bit current mode D/A output and PWM direct speaker driving output minimize the number of external components. PC controlled programmer and developing software are available. Ver 4.0 1 May 14, 2009 Integrated Circuits Inc. aP89341/170/085 PIN NAMES PI

📥 Download Datasheet

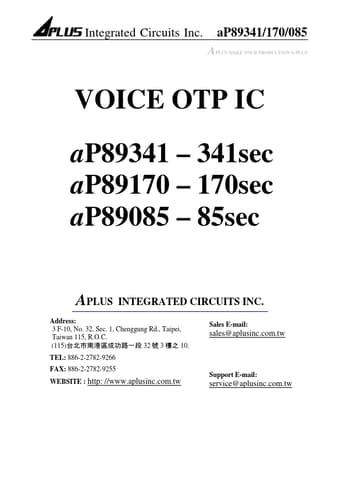

Preview of aP89341 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
aP89341
Manufacturer
APLUS
File Size
354.10 KB
Datasheet
aP89341-APLUS.pdf
Description
VOICE OTP
