AP120P06D Datasheet, Mosfet, APM

AP120P06D Features

  • Mosfet VDS = -60V ID =-120A RDS(ON) < 7.2mΩ @ VGS=-10V (Type:5.3mΩ) Application Lithium battery protection Wireless impact Mobile phone fast charging Package Marking and Ordering Information

PDF File Details

Part number:

AP120P06D

Manufacturer:

APM

File Size:

902.29kb

Download:

📄 Datasheet

Description:

-60v p-channel enhancement mode mosfet. The AP120P06D uses advanced APM-SGTⅠ technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low

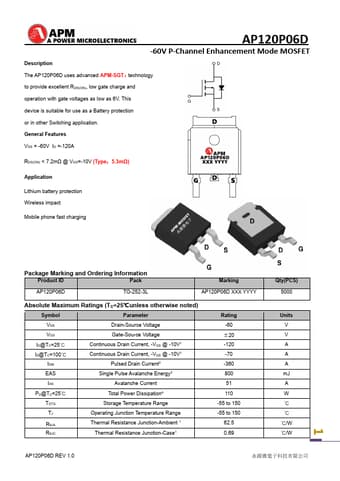

Datasheet Preview: AP120P06D 📥 Download PDF (902.29kb)
Page 2 of AP120P06D Page 3 of AP120P06D

AP120P06D Application

  • Applications , should be limited by total power dissipation. 2 AP120P06D REV 1.0 Typ. output characteristics AP120P06D -60V P-Channel Enhancem
