AP50N04DF Datasheet - APM

40V N-Channel Enhancement Mode MOSFET

AP50N04DF Features

* VDS = 40V ID =50A RDS(ON) < 18mΩ @ VGS=10V （Type：13mΩ） Application VBUS Wireless impact Mobile phone fast charging Package Marking and Ordering Information Product ID Pack Marking AP50N04DF PDFN3X3-8L AP50N04DF XXX YYYY Absolute Maximum Ratings (TC=25℃unless otherwise noted) Symbol Para

AP50N04DF General Description

AP50N04DF 40V N-Channel Enhancement Mode MOSFET The AP50N04DF uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Featu.

AP50N04DF Datasheet (641.10 KB)

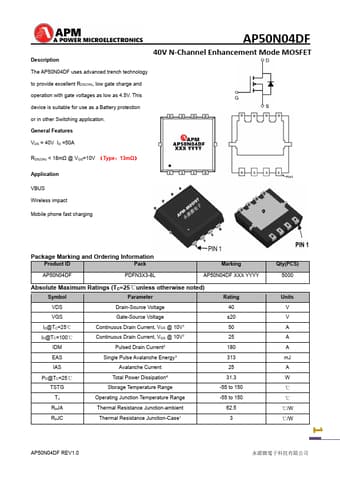

Preview of AP50N04DF PDF

Datasheet Details

Part number:

AP50N04DF

Manufacturer:

APM

File Size:

641.10 KB

Description:

40v n-channel enhancement mode mosfet.
