AP80N03BDF 30V N-Channel Enhancement Mode MOSFET

AP80N03BDF Description

AP80N03BDF 30V N-Channel Enhancement Mode MOSFET .
The AP80N03BDF uses advanced APM-SGT V technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 4.

AP80N03BDF Applications

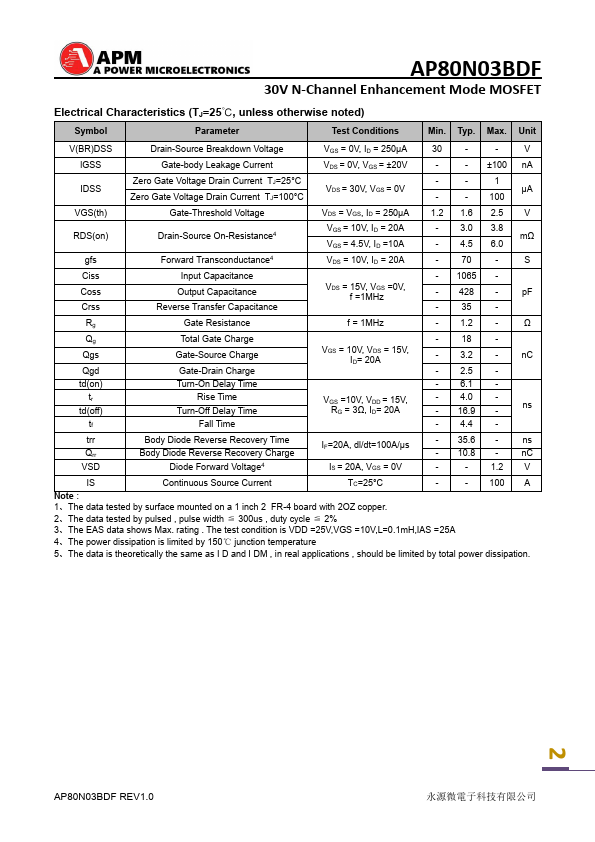

* , should be limited by total power dissipation. 2 AP80N03BDF REV1.0 Typical Characteristics AP80N03BDF 30V N-Channel Enhancement Mode MOSFET Figure 1. Output Characteristics Figure 2. Transfer Characteristics Figure 3. Forward Characteristics of Reverse Figure 4. R DS(ON) vs. VGS 3 Figur
