AP90N03D - 30V N-Channel Enhancement Mode MOSFET

Product Overview

APM

AP90N03D 30V N-Channel Enhancement Mode MOSFET by APM - Datasheet Preview — Datasheet preview – AP90N03D

Datasheet Details

Part number	AP90N03D
Manufacturer	APM
File Size	1.38 MB
Description	30V N-Channel Enhancement Mode MOSFET
Datasheet	AP90N03D Datasheet

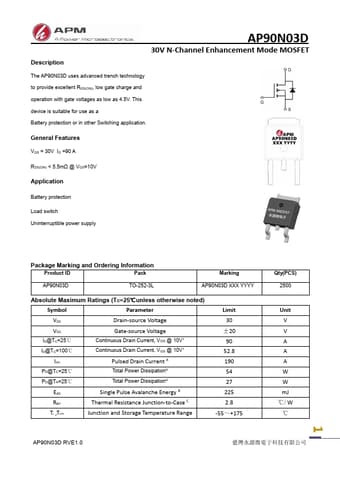

Additional preview pages of the AP90N03D datasheet.

Product details

Description

AP90N03D 30V N-Channel Enhancement Mode MOSFET The AP90N03D uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 4.5V.This device is suitable for use as a Battery protection or in other Switching application.General

Features

VDS = 30V ID =90 A RDS(ON) < 5.5mΩ @ VGS=10V.
