IAP200B120 Datasheet - APPLIED POWER SYSTEMS

IAP200B120, 200A / 1200V Full-Bridge IGBT Inverter

APPLIED POWER SYSTEMS, INC.IAP200B120 SixPac™ 200A / 1200V Full-Bridge IGBT Inverter .
Connected to circuit ground 0-15V signal controlling the duty cycle of A- IGBT Open collector output, external pull-up resistor required.

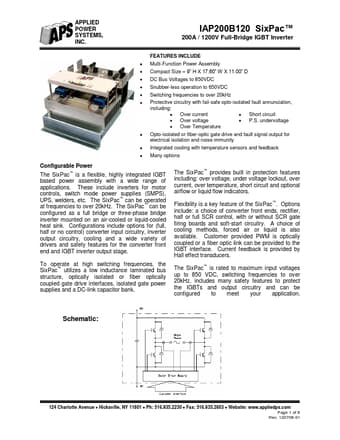

datasheet Preview Page 1 from Datasheet4u.com

IAP200B120-APPLIEDPOWERSYSTEMS.pdf

Preview of IAP200B120 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number:

IAP200B120

Manufacturer:

APPLIED POWER SYSTEMS

File Size:

214.74 KB

Description:

200A / 1200V Full-Bridge IGBT Inverter

Features

* INCLUDE Multi-Function Power Assembly Compact Size
* 9” H X 17.60” W X 11.00” D DC Bus Voltages to 850VDC Snubber-less operation to 650VDC Switching frequencies to over 20kHz Protective circuitry with fail-safe opto-isolated fault annunciation, including: Over current Short circuit Over volt

Applications

* These include inverters for motor controls, switch mode power supplies (SMPS), UPS, welders, etc. The SixPac™ can be operated at frequencies to over 20kHz. The SixPac™ can be configured as a full bridge or three-phase bridge inverter mounted on an air-cooled or liquid-cooled heat sink. Configuratio
