AT32F415 - 32-bit MCU

Product Overview

Datasheet Details

Part number	AT32F415
Manufacturer	ARTERY
File Size	2.72 MB
Description	32-bit MCU
Datasheet	AT32F415 Datasheet

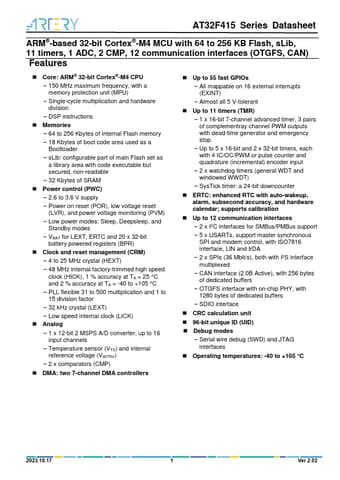

Additional preview pages of the AT32F415 datasheet.

Product details

Description

10 2 Functional overview 12 2.1 ARM® Cortex®-M4 12 2.2 Memory 13 2.2.1 Internal Flash memory 13 2.2.2 Memory protection unit (MPU) 13 2.2.3 Embedded SRAM13 2.3 Interrupts 13 2.3.1 Nested vectored interrupt controller (NVIC)13 2.3.2 External interrupts (EXINT) 13 2.4 Power control (PWC) 14 2.4.1 Power supply schemes 14 2.4.2 Reset and power voltage monitoring (POR / LVR / PVM) 14 2.4.3 Voltage regulator (LDO) 14 2.4.4 Low-power modes 14 2.5 Boot modes

Features

Core: ARM® 32-bit Cortex®-M4 CPU.
150 MHz maximum frequency, with a memory protection unit (MPU).
Single-cycle multiplication and hardware division.
DSP instructions.
Memories.
64 to 256 Kbytes of internal Flash memory.
18 Kbytes of boot code area used as a Bootloader.
sLib: configurable part of main Flash set as a library area with code executable but secured, non-readable.
32 Kbytes of SRAM.
Power control (PWC).
