AT32F413 - 32-bit MCU+FPU

Product Overview

Datasheet Details

Part number	AT32F413
Manufacturer	ARTERY
File Size	2.76 MB
Description	32-bit MCU+FPU
Datasheet	AT32F413 Datasheet

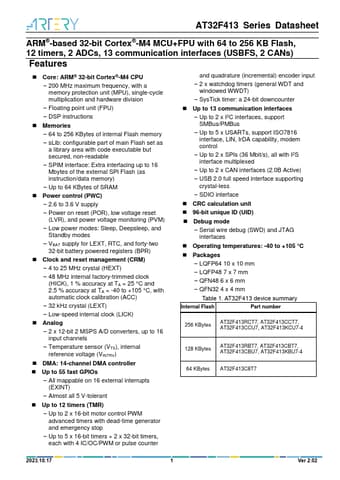

Additional preview pages of the AT32F413 datasheet.

Product details

Description

9 2 Functional overview 11 2.1 ARM® Cortex®-M4 with FPU 11 2.2 Memory 12 2.2.1 Internal Flash memory 12 2.2.2 Memory protection unit (MPU) 12 2.2.3 Embedded SRAM12 2.3 Interrupts 13 2.3.1 Nested vectored interrupt controller (NVIC)13 2.3.2 External interrupts (EXINT) 13 2.4 Power control (PWC) 13 2.4.1 Power supply schemes 13 2.4.2 Reset and power voltage monitor (POR / LVR / PVM) 13 2.4.3 Voltage regulator (LDO) 13 2.4.4 Low-power modes 14 2.5 Boot modes 14 2.6 Clocks 15

Features

Core: ARM® 32-bit Cortex®-M4 CPU.
200 MHz maximum frequency, with a memory protection unit (MPU), single-cycle multiplication and hardware division.
Floating point unit (FPU).
DSP instructions.
Memories.
64 to 256 KBytes of internal Flash memory.
sLib: configurable part of main Flash set as a library area with code executable but secured, non-readable.
SPIM interface: Extra interfacing up to 16 Mbytes of the external SPI Flash (as.
