AT32F4212 - 32-bit MCU

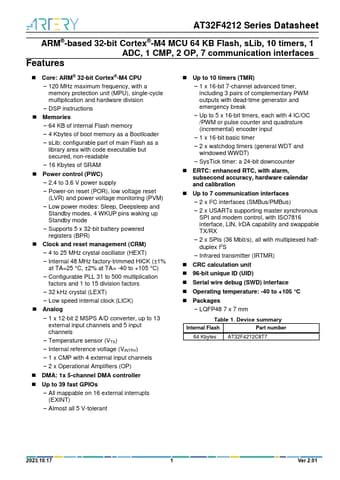

AT32F4212 Datasheet Preview — Preview of AT32F4212 PDF

Datasheet Details

Part number	AT32F4212
Manufacturer	ARTERY
File Size	2.36 MB
Description	32-bit MCU
Datasheet	AT32F4212-ARTERY.pdf

AT32F4212 Product details

Description

8 2 Functional overview 9 2.1 ARM®Cortex®-M4 9 2.2 Memory 9 2.2.1 Internal Flash memory 9 2.2.2 Memory protection unit (MPU) 9 2.2.3 Embedded SRAM9 2.3 Interrupts 9 2.3.1 Nested vectored interrupt controller (NVIC)9 2.3.2 External interrupts (EXINT) 9 2.4 Power control (PWC) 10 2.4.1 Power supply schemes 10 2.4.2 Reset and power voltage monitoring (POR / LVR / PVM)10 2.4.3 Voltage regulator (LDO) 10 2.4.4 Low-power modes 10 2.5 Boot modes 11 2.6 Clocks 11 2.7 General-purpose inpu

Features

Core: ARM® 32-bit Cortex®-M4 CPU.
120 MHz maximum frequency, with a memory protection unit (MPU), single-cycle multiplication and hardware division.
DSP instructions.
Memories.
64 KB of internal Flash memory.
4 Kbytes of boot memory as a Bootloader.
sLib: configurable part of main Flash as a library area with code executable but secured, non-readable.
16 Kbytes of SRAM.
Power control (PWC).
2.4 to 3.6 V power supply.
