ASX621 - DC-3000 MHz MMIC Amplifier

ASX621 Description

ASX621 DC-3000 MHz MMIC Amplifier .
The ASX621, a power amplifier MMIC, has a high linearity, high gain, and high efficiency over a wide range of frequency, being suitable for use in bot.

ASX621 Features

* 18 dB Gain at 2000 MHz
* 32.5 dBm P1dB
* 49 dBm Output IP3
* MTTF > 100 Years

ASX621 Applications

* CDMA, GSM, W-CDMA, PCS
* Gain Block
* CATV Amplifier
* IF Amplifier
* WiBro Amplifier
* Bluetooth Amplifier
* Wireless LAN Amplifier Noise Figure Output P1dB Supply Current Supply Voltage
* Performance tested at 50 Ω system and a room temperature. 1) OIP3 measured with t

📥 Download Datasheet

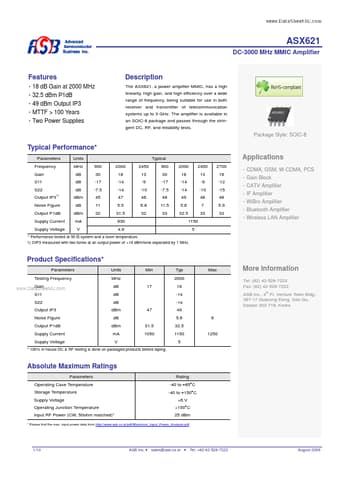

Preview of ASX621 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ASX621
Manufacturer
ASB
File Size
384.86 KB
Datasheet
ASX621_ASB.pdf
Description
DC-3000 MHz MMIC Amplifier
