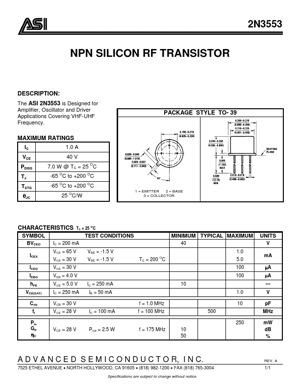

2N3553 Datasheet, TRANSISTOR, ASI

PDF File Details

Part number:

2N3553

Manufacturer:

ASI

File Size:

19.98kb

Download:

📄 Datasheet

Description:

Npn silicon rf transistor. The ASI 2N3553 is Designed for Amplifier, Oscillator and Driver Applications Covering VHF-UHF Frequency. MAXIMUM RATINGS IC 1.0 A

2N3553 Application

• Applications Covering VHF-UHF Frequency. MAXIMUM RATINGS IC 1.0 A VCE PDISS TJ TSTG θJC 40 V 7.0 W @ TC = 25 OC -65 OC to +200 OC -65 OC to +200
