MA4060B Datasheet - ASI

MA4060B SILICON MULTIPIER VARACTOR DIODE

The MA4060B is a Silicon High Power UHF-VHF Multiplier Varactor Diode. MAXIMUM RATINGS I V PDISS TJ TSTG θJC O O 100 mA 90 V 12.5 W @ TC = 25 C -65 C to +150 C -65 C to +150 C 9.0 C/W O O O O NONE CHARACTERISTICS SYMBOL VB CT Rs PIN IR = 10 µA VR = 0 V TC = 25 C O TEST CONDITIONS f = 1.0 MHz.

MA4060B_ASI.pdf

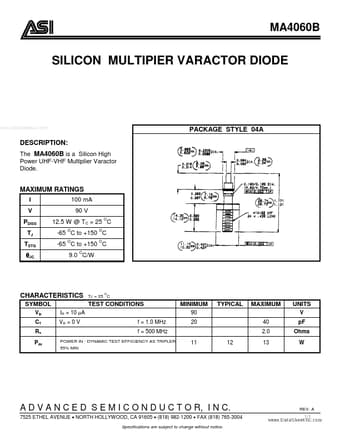

MA4060B Datasheet Preview — Preview of MA4060B PDF

Datasheet Details

Part number:

MA4060B

Manufacturer:

ASI

File Size:

59.78 KB

Description:

Silicon multipier varactor diode.
