L9110 - Motor control driver

Datasheet Summary

Description

discrete circuits integrated into a monolithic IC, peripheral devices and reduce the cost, improve the reliability of the whole.

Features

  • Low quiescent current; Wide supply voltage range: 2.5V-12V; 800mA continuous current output capability per channel; Lower saturation voltage; TTL / CMOS output level compatible, and can be directly connected to the CPU; Output built-in clamp diodes for inductive load; Integrated control and drive into a monolithic IC; With pin high-voltage protection function; Operating temperature: 0 ℃ -80 ℃.

📥 Download Datasheet

Datasheet preview – L9110

Datasheet Details

Part number L9110
Manufacturer ASIC
File Size 200.24 KB
Description Motor control driver
Datasheet download datasheet L9110 Datasheet
Additional preview pages of the L9110 datasheet.

📁 Similar Datasheet

  • L9110 - Motor Control Driver (ETC)
  • L9110S - Motor control drive IC (UMW)
  • L9106 - ISL9106 (Intersil Corporation)
  • L9120 - Motor Control Driver Chip (Kennedy Electronics)
  • L9120 - Motor control driver chip (Kennedy Sung)
  • L9170 - Single-channel 3.5A H-bridge driver (icdemi)
  • L9177A - Automotive engine management control IC (STMicroelectronics)
  • L91CSDC12V - PCB Relay (LEONE)
  • L91CSDC24V - PCB Relay (LEONE)
Other Datasheets by ASIC

    Full PDF Text Transcription

    Click to expand full text

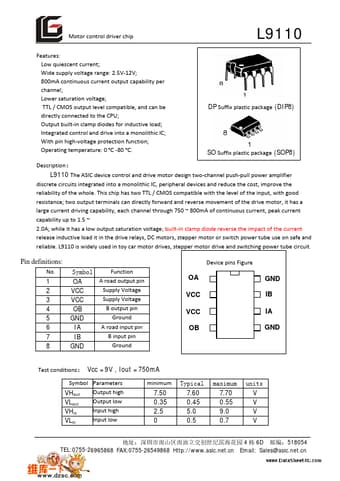

    Motor control driver chip Features: Low quiescent current; Wide supply voltage range: 2.5V-12V; 800mA continuous current output capability per channel; Lower saturation voltage; TTL / CMOS output level compatible, and can be directly connected to the CPU; Output built-in clamp diodes for inductive load; Integrated control and drive into a monolithic IC; With pin high-voltage protection function; Operating temperature: 0 ℃ -80 ℃. Description： L9110 DP Suffix plastic package (DIP8) SO Suffix plastic package (SOP8) L9110 The ASIC device control and drive motor design two-channel push-pull power amplifier discrete circuits integrated into a monolithic IC, peripheral devices and reduce the cost, improve the reliability of the whole.
