25F512 Datasheet - ATMEL Corporation

25F512, AT25F512

.
The AT25F512/1024 provides 524,288/1,048,576 bits of serial reprogrammable Flash memory organized as 65,536/131,072 words of 8 bits each.

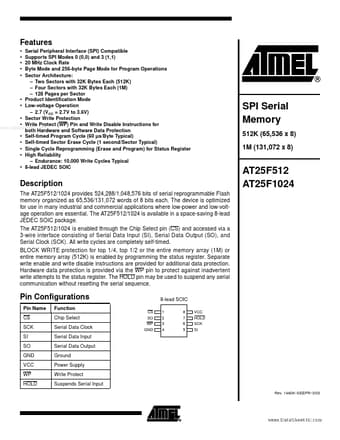

datasheet Preview Page 1 from Datasheet4u.com

25F512_ATMELCorporation.pdf

25F512 Datasheet Preview — Preview of 25F512 PDF

Datasheet Details

Part number:

25F512

Manufacturer:

ATMEL Corporation

File Size:

198.15 KB

Description:

AT25F512

Features

* Serial Peripheral Interface (SPI) Compatible Supports SPI Modes 0 (0,0) and 3 (1,1) 20 MHz Clock Rate Byte Mode and 256-byte Page Mode for Program Operations Sector Architecture:
* Two Sectors with 32K Bytes Each (512K)
* Four Sectors with 32K Bytes Each (1M)
* 128 Pages per

Applications

* where low-power and low-voltage operation are essential. The AT25F512/1024 is available in a space-saving 8-lead JEDEC SOIC package. The AT25F512/1024 is enabled through the Chip Select pin (CS) and accessed via a 3-wire interface consisting of Serial Data Input (SI), Serial Data Output (SO), and Se
