25F005 Datasheet - Saifun

25F005 - SF25F005

The SA25F005 is a 512Kb (256K X 2) CMOS non-volatile serial Flash Memory.

This device fully conforms to the SPI 4-wire protocol, is enabled through the Chip Select (CSb) pin, and uses Clock (SCK), Data-in (SI) and Data-out (SO) pins to synchronously control data transfer between the SPI microcontrol

25F005 Features

* =

* =

* = Saifun NROMâ„¢ Flash Cell Serial Peripheral Interface (SPI) Compatible, Supports SPI Modes 0 (0,0) and 3 (1,1) Page Program Operation: 256 pages (256 Bytes/Page) Single Page Rewrite Cycle (Erase and Program) in 10ms Typical Page Program Mode (up to 256 bytes) in 9ms Ty

25F005_Saifun.pdf

Preview of 25F005 PDF

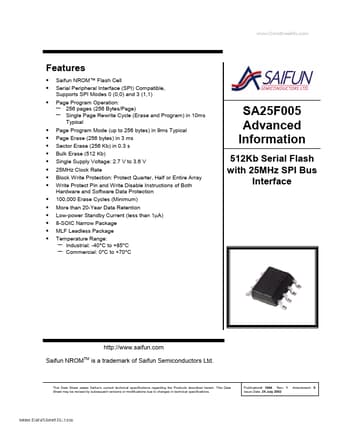

25F005 Datasheet Preview Page 2 25F005 Datasheet Preview Page 3

Datasheet Details

Part number:

25F005

Manufacturer:

Saifun

File Size:

599.20 KB

Description:

Sf25f005.
