25F512AN - AT25F512AN

25F512AN Description

www.DataSheet4U.com .
The AT25F512A provides 524,288 bits of serial reprogrammable Flash memory organized as 65,536 words of 8 bits each.

25F512AN Features

* Serial Peripheral Interface (SPI) Compatible
* Supports SPI Modes 0 (0,0) and 3 (1,1)
* Datasheet Describes 0 Operation
* 33 MHz Clock Rate
* Byte Mode and 128-byte Page Mode for Program Operations
* Sector Architecture:

25F512AN Applications

* where low-power and low-voltage operation are essential. The AT25F512A is available in a space-saving 8-lead JEDEC SOIC and 8-lead SAP packages. The AT25F512A is enabled through the Chip Select pin (CS) and accessed via a three-wire interface consisting of Serial Data Input (SI), Serial Data Output

📥 Download Datasheet

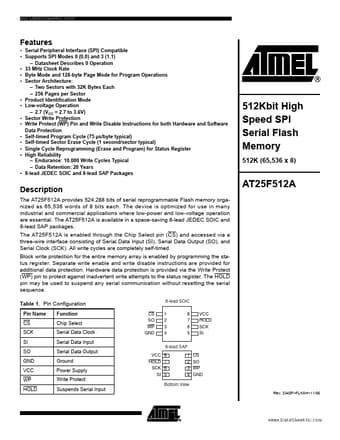

Preview of 25F512AN PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
25F512AN
Manufacturer
ATMEL Corporation
File Size
668.51 KB
Datasheet
25F512AN_ATMELCorporation.pdf
Description
AT25F512AN
