90S4414 Datasheet - ATMEL Corporation

90S4414 8-Bit Microcontroller with 4K bytes In-System Programmable Flash

The AT90S4414 is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the AT90S4414 achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing .

90S4414 Features

* AVR® - High Performance and Low Power RISC Architecture

* 118 Powerful Instructions - Most Single Clock Cycle Execution

* 4K bytes of In-System Reprogrammable Flash

90S4414_ATMELCorporation.pdf

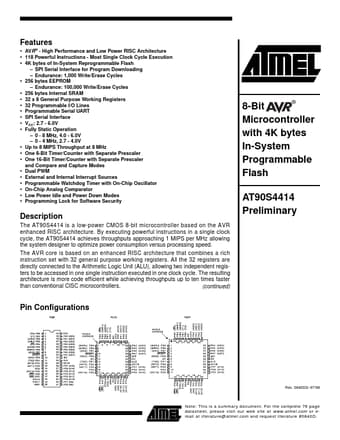

Preview of 90S4414 PDF
90S4414 Datasheet Preview Page 2 90S4414 Datasheet Preview Page 3

Datasheet Details

Part number:

90S4414

Manufacturer:

ATMEL Corporation

File Size:

736.32 KB

Description:

8-bit microcontroller with 4k bytes in-system programmable flash.
