90SQ040
International Rectifier
124.47 KB
Schottky rectifier.

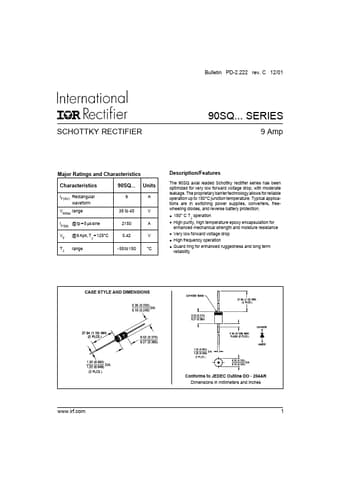

Bulletin PD-2.222 rev. C 12/01
90SQ SERIES
SCHOTTKY RECTIFIER 9 Amp
Major Ratings and Characteristics Characteristics
IF(AV) Rectangular waveform VR.
* Units A V A V °C The 90SQ axial leaded Schottky rectifier series has been optimized for very low forward voltage drop, with moderate leakage. The proprietary barrier technology allows for reliable operation up to 150°C junction temperature. Typical applications are in switching power supplies, conve
