AT24C512 2-wire Serial EEPROM

AT24C512 Description

.
The AT24C512 provides 524,288 bits of serial electrically erasable and programmable read only memory (EEPROM) organized as 65,536 words of 8 bits each.

AT24C512 Features

* Low-voltage and Standard-voltage Operation
* 5.0 (VCC = 4.5V to 5.5V)
* 2.7 (VCC = 2.7V to 5.5V)
* 1.8 (VCC = 1.8V to 3.6V) Internally Organized 65,536 x 8 2-wire Serial Interface Schmitt Triggers, Filtered Inputs for Noise Suppression Bidirectional Data Transfer Pr

AT24C512 Applications

* where low-power and low-voltage operation are essential. The devices are available in space-saving 8-pin PDIP, 20-pin JEDEC SOIC, 8-pin Leadless Array (LAP), and 8-ball dBGA packages. In addition, the entire family is available in 5.0V (4.5V to 5.5V), 2.7V (2.7V to 5.5V) and 1.8V (1.8V to 3.6V) vers

📥 Download Datasheet

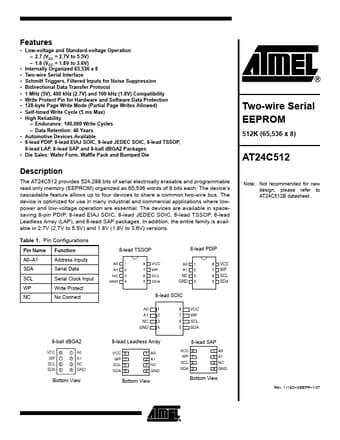

Preview of AT24C512 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AT24C512
Manufacturer
ATMEL Corporation
File Size
445.25 KB
Datasheet
AT24C512_ATMELCorporation.pdf
Description
2-wire Serial EEPROM
