AT24C512B Two-wire Serial EEPROM 512K

AT24C512B Description

www.DataSheet4U.com .
The AT24C512B provides 524,288 bits of serial electrically erasable and programmable read only memory (EEPROM) organized as 65,536 words of 8 bits eac.

AT24C512B Features

* Low-voltage and Standard-voltage Operation
* 1.8 (VCC = 1.8V to 3.6V) Internally Organized 65,536 x 8 Two-wire Serial Interface Schmitt Triggers, Filtered Inputs for Noise Suppression Bidirectional Data Transfer Protocol 1 MHz (3.6V), 400 kHz (1.8V) Compatibility Write Protect Pin

AT24C512B Applications

* where low-power and low-voltage operation are essential. The devices are available in space-saving 8-pin PDIP, 8-lead JEDEC SOIC, 8-lead TSSOP, 8-lead Leadless Array (LAP), and 8-lead SAP packages. In addition, the entire family is available in a 1.8V (1.8V to 3.6V) version. AT24C512B with Three De

📥 Download Datasheet

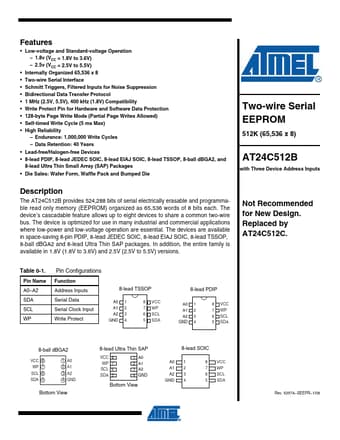

Preview of AT24C512B PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AT24C512B
Manufacturer
ATMEL Corporation
File Size
365.07 KB
Datasheet
AT24C512B_ATMELCorporation.pdf
Description
Two-wire Serial EEPROM 512K
