AT27C520

512K 64K x 8 Multiplexed Addresses/ Outputs OTP EPROM

AT27C520 Features

* 8-Bit Multiplexed Addresses/Outputs

* Fast Read Access Time - 70 ns

* Low Power CMOS Operation

* 20 mA max. Active at 5 MHz 20-Lead TSSOP Package 20-Lead SOIC Package 28-Lead T

AT27C520 General Description

The AT27C520 is a low-power, high performance 524,288 bit one-time programmable read only memory (OTP EPROM) organized 64K by 8 bits. It incorporates latches for the 8 lower order address bits to multiplex with the 8 data bits. This minimizes system chip count, reduces cost, and simplifies the desig.

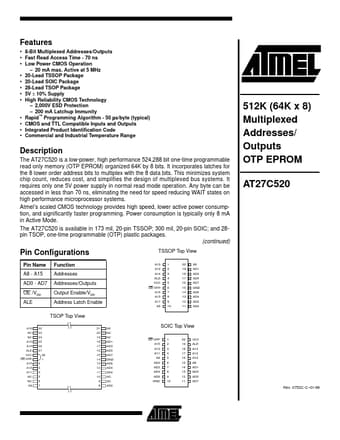

AT27C520 Datasheet (126.07 KB)

Preview of AT27C520 PDF

Datasheet Details

Part number:

AT27C520

Manufacturer:

ATMEL Corporation

File Size:

126.07 KB

Description:

512k 64k x 8 multiplexed addresses/ outputs otp eprom.
