AT42QT1010 - One-channel Touch Sensor

Product Overview

ATMEL Corporation

Datasheet Details

Part number	AT42QT1010
Manufacturer	ATMEL Corporation
File Size	200.23 KB
Description	One-channel Touch Sensor
Datasheet	AT42QT1010 Datasheet
Additional preview pages of the AT42QT1010 datasheet.

Product details

Description

1.2.1 6-pin SOT23-6 Table 1-1. Name OUT VSS SNSK SNS VDD SYNC Pin Listing Pin 1 2 3 4 5 Type O P I/O I/O P 6I Comments Output state Supply ground Sense pin Sense pin Power SYNC and Mode Input If Unused, Connect To Cs + Key Cs Pin is either SYNC/Slow/Fast Mode, depending on logic level applied (see Section 3.1 on page 7) I Input only O Output only, push-pull I/O Input and output P Ground or power 1.2.2 8-pin UDFN/USON Table 1-2. Name SNSK N/C N/C VSS OUT

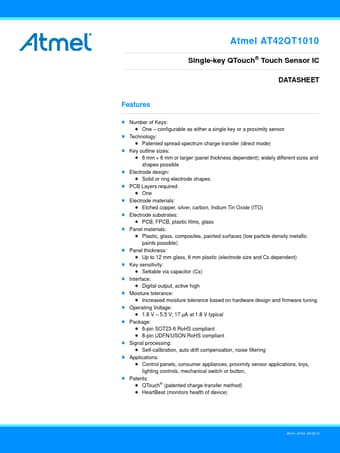

Features

Number of Keys:.
One.
Configurable as either a single key or a proximity sensor.
Technology:.
Patented spread-spectrum charge-transfer (direct mode).
Key outline sizes:.
6 mm x 6 mm or larger (panel thickness dependent); widely different sizes and shapes possible.
Electrode design:.
Solid or ring electrode shapes.
PCB Layers required:.
One.
Electrode materials:.
Etched copper, si.
