AT45DB081, AT4-5DB Datasheet - ATMEL Corporation

AT45DB081 - 8-Megabit 2.7-volt Only Serial DataFlash

The AT45DB081 is a 2.7-volt only, serial interface Flash memory suitable for in-system reprogramming.

Its 8,650,752 bits of memory are organized as 4096 pages of 264-bytes each.

In addition to the main memory, the AT45DB081 also contains two data buffers of 264-bytes each.

The buffers allow receivin

AT45DB081 Features

* Single 2.7V - 3.6V Supply

* Serial Interface Architecture

* Page Program Operation

* Single Cycle Reprogram (Erase and Program)

* 4096 Pages (264 Bytes/Page)

AT4-5DB-081.pdf

This datasheet PDF includes multiple part numbers: AT45DB081, AT4-5DB. Please refer to the document for exact specifications by model.

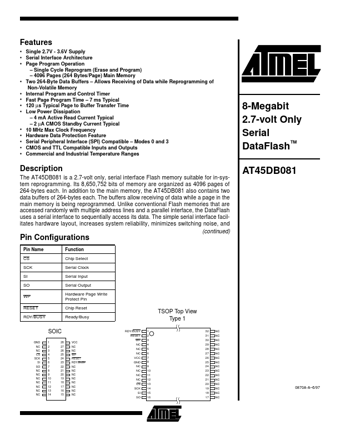

AT45DB081 Datasheet Preview Page 2 AT45DB081 Datasheet Preview Page 3

Datasheet Details

Part number:

AT45DB081, AT4-5DB

Manufacturer:

ATMEL Corporation

File Size:

115.01 KB

Description:

8-megabit 2.7-volt only serial dataflash.

Note:

This datasheet PDF includes multiple part numbers: AT45DB081, AT4-5DB.
Please refer to the document for exact specifications by model.
