AT45DB041D - 4-megabit 2.5-volt or 2.7-volt DataFlash

Product Overview

Adesto

Datasheet Details

Part number	AT45DB041D
Manufacturer	Adesto
File Size	1.02 MB
Description	4-megabit 2.5-volt or 2.7-volt DataFlash
Datasheet	AT45DB041D Datasheet

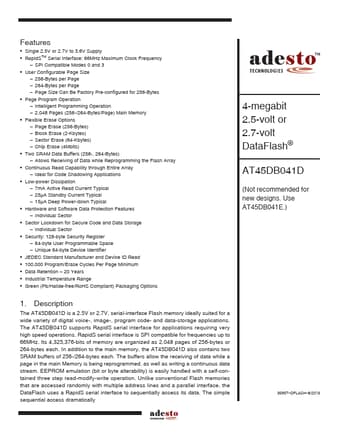

Additional preview pages of the AT45DB041D datasheet.

Product details

Description

The AT45DB041D is a 2.5V or 2.7V, serial-interface Flash memory ideally suited for a wide variety of digital voice-, image-, program code- and data-storage applications.

Features

Single 2.5V or 2.7V to 3.6V Supply.
RapidSTM Serial Interface: 66MHz Maximum Clock Frequency.
SPI Compatible Modes 0 and 3.
User Configurable Page Size.
256-Bytes per Page.
264-Bytes per Page.
Page Size Can Be Factory Pre-configured for 256-Bytes Page Program Operation.
Intelligent Programming Operation.
2,048 Pages (256-/264-Bytes/Page) Main Memory Flexible Erase Options.
Page Erase (256-Bytes).
