AT45DB021A Datasheet - ATMEL Corporation

2-megabit 2.7-volt Only Serial DataFlash

AT45DB021A Features

* 100% Compatible to AT45D021 Single 2.7V - 3.6V Supply Serial Interface Architecture Page Program Operation

* Single Cycle Reprogram (Erase and Program)

AT45DB021A General Description

The AT45DB021A is a 2.7-volt only, serial interface Flash memory suitable for in-system reprogramming. Its 2,162,688 bits of memory are organized as 1024 pages of 264 bytes each. In addition to the main memory, the AT45DB021A also contains two SRAM data buffers of 264 bytes each. The buffers allow r.

AT45DB021A Datasheet (421.56 KB)

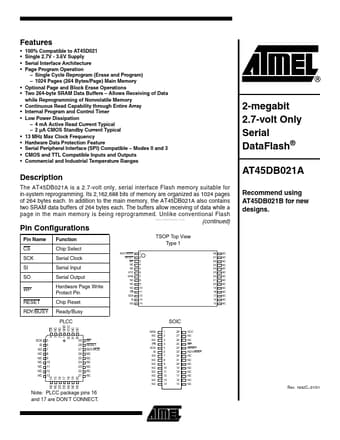

AT45DB021A Datasheet Preview — Preview of AT45DB021A PDF

Datasheet Details

Part number:

AT45DB021A

Manufacturer:

ATMEL Corporation

File Size:

421.56 KB

Description:

2-megabit 2.7-volt only serial dataflash.
