AT45DB021 2-Megabit 2.7-volt Only Serial DataFlash

The AT45DB021 is a 2.7-volt only, serial interface Flash memory suitable for in-system reprogramming. Its 2,162,688 bits of memory are organized as 1024 pages of 264-bytes each. In addition to the main memory, the AT45DB021 also contains two SRAM data buffers of 264-bytes each. The buffers allow rec.

AT45DB021 Features

* Single 2.7V - 3.6V Supply

* Serial Interface Architecture

* Page Program Operation

* Single Cycle Reprogram (Erase and Program)

* 1024 Pages (264 Bytes/Page)

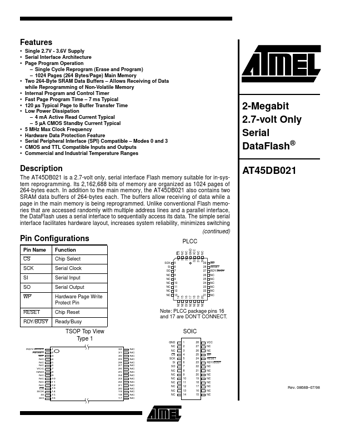

AT4-5DB-021.pdf

AT45DB021 Datasheet Preview — This datasheet PDF includes multiple part numbers: AT45DB021, AT4-5DB. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

AT45DB021, AT4-5DB

Manufacturer:

ATMEL Corporation

File Size:

201.43 KB

Description:

2-megabit 2.7-volt only serial dataflash.

Note:

This datasheet PDF includes multiple part numbers: AT45DB021, AT4-5DB.
Please refer to the document for exact specifications by model.
